The Engineering Aspects of the Danfoss ICF Valve

🌟 The Engineering Aspects of the Danfoss ICF Valve and Its Core Role in Ammonia Refrigeration Systems 🌟

Part One

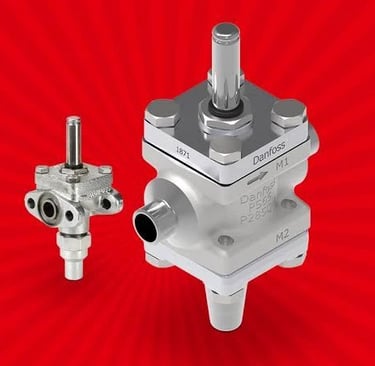

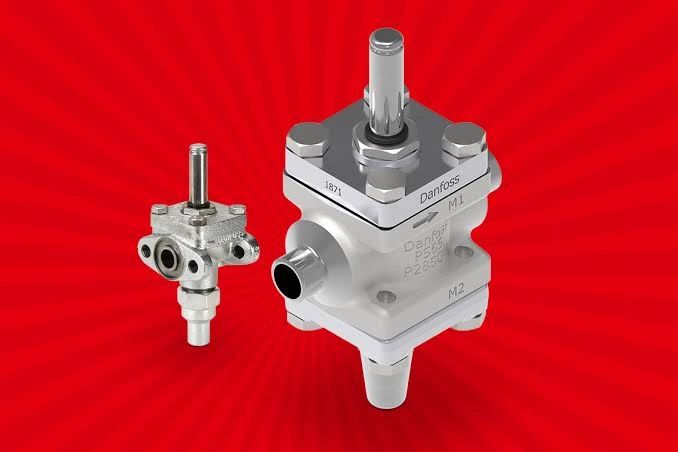

The ICF valve from Danfoss is an advanced engineering product specifically designed to meet the demands of high-efficiency industrial systems, such as ammonia refrigeration circuits used in industrial applications (factories, cold storage warehouses, and more).

Here’s an overview of its unique engineering aspects and its pivotal role:

1. Advanced Engineering Aspects of the Valve:

1. Interchangeable Design:

• The valve allows for the replacement of internal components (such as orifices and inserts) without the need to replace the external body, reducing costs and speeding up maintenance.

• Built from highly durable materials such as stainless steel and copper alloys, it withstands the harsh chemical properties of ammonia (NH₃) and prevents corrosion.

2. High-Pressure Resistance:

• Designed to operate at pressures up to PN40, making it suitable for ammonia refrigeration circuits running under high pressure.

3. Precise Flow Control System:

• Features a dynamic control mechanism that ensures accurate regulation of liquid or gaseous ammonia flow in line with the required thermal load, enhancing system efficiency.

4. Compatibility with Ammonia as a Refrigerant:

• Developed according to international safety standards (e.g., ISO 5149 and ASHRAE 15) to guarantee chemical and mechanical compatibility with ammonia, while minimizing leakage risks.

5. Easy System Integration:

• Can be connected to various actuators and sensors, enabling a fully automated control system.

2. The Valve’s Core Role in an Ammonia Refrigeration Circuit:

In a standard ammonia refrigeration cycle, the ICF valve performs the following critical functions:

• Regulation of Liquid Ammonia Flow:
  Controls the amount of ammonia entering the evaporator, ensuring efficient cooling without energy waste.

• Pressure and Temperature Regulation:
  Maintains balance between condenser pressure and evaporator pressure, preventing issues such as water hammer or pipe freezing.

• Enhancing Refrigeration Efficiency:
  Reduces thermal losses by fine-tuning ammonia flow, lowering energy consumption and delivering cost savings.

• Overload Protection:
  Can be programmed to shut off automatically in unsafe pressure or temperature conditions, safeguarding both the system and personnel.

3. Benefits of Using the ICF Valve in Ammonia Systems:

• Reduced Downtime:
  Thanks to its interchangeable design, maintenance can be performed without dismantling the entire system.

• Extended System Lifetime:
  Materials used resist ammonia-induced corrosion, even in humid or high-temperature environments.

• Sustainability Support:
  Improved energy efficiency reduces carbon emissions, aligning with circular economy principles and green industry standards.

4. Typical Applications in Ammonia Refrigeration:

• Food and beverage factories (production line cooling).

• Large-scale cold storage warehouses.

• Refrigeration systems in the petrochemical industry.

5. Post-Installation ✅

1. Gradual Ammonia Refilling:

• Follow slow refilling protocols to monitor any abnormal pressure changes.

2. Control System Calibration:

• Adjust valve settings (such as flow rate and pressure settings) according to system requirements.

3. Documentation:

• Record installation date, replaced component specifications, and pressure test results.

By following these guidelines, you ensure optimal efficiency of your refrigeration system and avoid unexpected failures! 🚀
